MIL-S-22824E
When first article is required for inspection and approval (see 3.2).
d.
When chain assemblies should be furnished (see 3.13).
e.
When painting of safety hooks is required (see 3.15).
f.
Number of samples required for quality conformance inspection (see
g.
4.2.2).
h.
Level of preservation and level of packing required (see 5.1 and 5.2).
6.3 First article. When a first article inspection is required, the item
will be tested and should be a first article sample selected from the first
sling assembly production item or it may be a standard production item from the
contractor's current inventory as specified in 4.2.1. The first article should
consist of one sling assembly. The contracting officer should include specific
instructions in acquisition documents regarding arrangements for examination,
test, and approval of the first article.

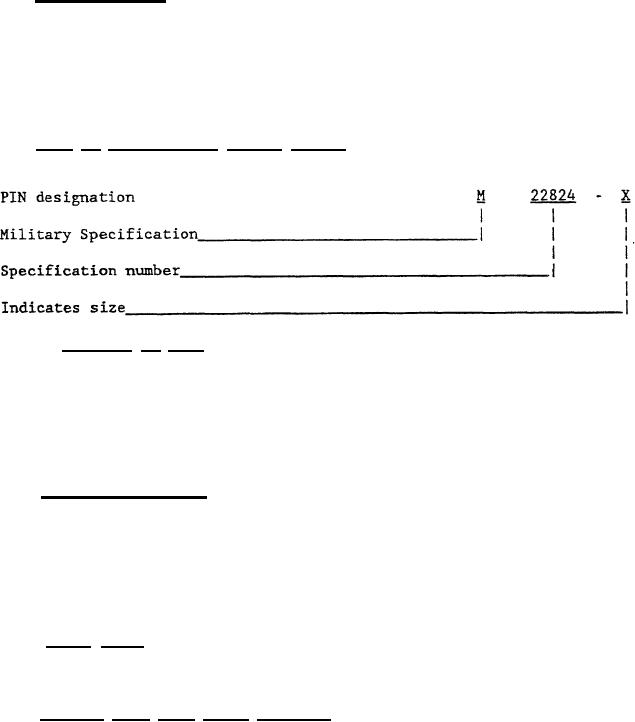

6.4 Part or indentifying number (PIN). The PIN to be used for sling assembly
acquired to this specification is created as follows:
6.4.1
Examples of PIN.
Example 1 - Required: size 5
PIN designation: M 22824-5
Example 2 - Required: size 60A
PIN designation: M 22824-60A
6.5 Supersession data. This specification supersedes MIL-S-82174(MC),
sling, Multiple Leg: Vehicle, Tactical, 60-Ton (Shipboard Loading). Figures 1
through 9 in this revision replaced the following drawings referenced in
MIL-S-22824(NAVY): Bureau of Ships Drawing S2003-1445483, 60 ton Tank Lifting
Sling; Bureau of Yards and Docks Drawing 816404, Lifting Sling (30 Ton Cap.)
Multiple Leg, with Extensions; Marine Corps Drawings 5060, Sling, Multiple leg
Assembly, 5 Ton; and 5070, Sling, Multiple Leg Assembly, 17 Ton.
* 6.6 Proof load. The proof load is calculated by multiplying twice the
nominal strength (refer to RR-W-410) by the splice efficiency, divided by a
factor of safety of 5.
6.7 Subject term (key word) listing.
Hook, safety
Leg assembly
Pear link
Shackle
Spreader bar
Wire rope
